Spring Forming Machine

Your Professional Spring Forming Machine Supplier

Zhejiang Omnipoten Spring Machine Co., Ltd. is a leading spring machine manufacturer in China, specializing in CNC spring coiling machines, spring forming machines, spring grinding machines, spring seamless machines, spring temper furnaces, and other related equipment. The company has been awarded as the only national new technology enterprise in the spring machinery industry, and also the main member of China Spring Association.

Provide One-stop Solution

First of your perferred supplier of spring machinesfrom design to production.We adhere to provides global users.

Superb Process Technology

Global technologies for wire forming and spring making, aim to better products for customers with CNC Spring Coiling Machines.

Advanced Design Concept

WNJ equipment is designed with two things in mind: Value and Profit, Manufactured with high-value engineering.

Emerging Brand Development

WNJ is committed to building world world-class intelligent equipment brand in the spring machine industry.

Multifunctional Computer Spring Forming Machine Technical Parameter

Model	Ronen-25-10	Ronen-23-10
Wire. Dlameter	0.2-2.5mm	0.2-2.3mm
Max.Wire Food	10000.00mm	10000.00mm
Min.Wire Food	0.01mm	0.01mm
Max.wire Food speed	120m/min	120m/min
Maximum wire length	Indefinite length	Indefinite length
Axis number	10 axis	10 axis
Power	9.8kw	9.4kw
The input voltage	380v	380v
Software	Pentium Industrial Computer	Pentium Industrial Computer
Program Storage	≥2000	≥2000
Air Pressure	5-6Kg/cm	5-6Kg/cm
Probe	3 pcs	3 pcs
Machine size	1200mm1250mm 1760mm	1200mm1250mm 1760mm
Machine weight	980KG	960KG

Function point

1. Adopts a camless and modular design, with fast adjustment speed, low noise. high accuracy, and good stability.

2. Controlled with ten axes, can work single-step or synchronously.

3. The slider adopts a precision linear guide mode and can be equipped with free hand, spinner and servo cutter.

4. Computer interface displayed in Chinese and English which makes the operation easy.

5. Can make special-shaped spring, torsion spring, tension spring and stationary products etc.

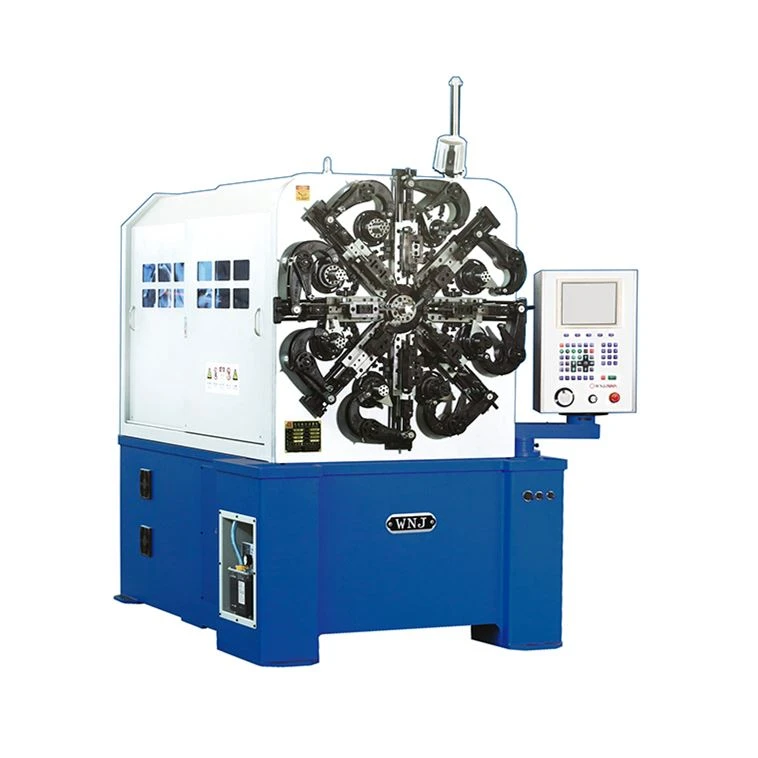

CNC Spring Forming Machine

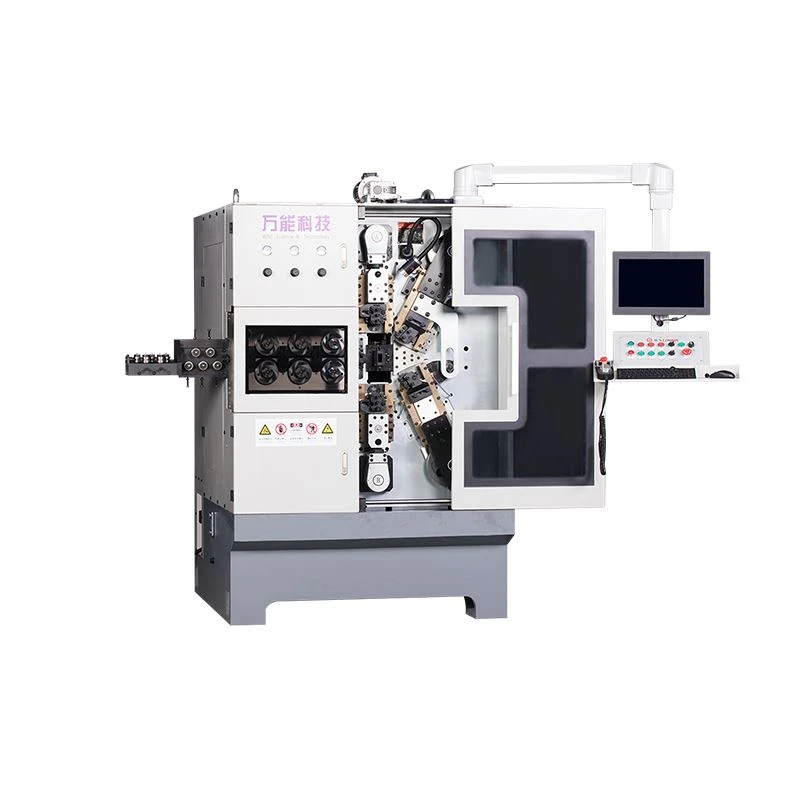

Compression Spring Making Machine

Why our machines matter

We offer customizable spring machines that can handle a wide range of wire diameters, perfect for creative toy designs. Our high-speed models improve output without compromising durability, making mass production easy and efficient.

How to Make a Customized Spring-Making Machine

Creating a customized spring-making machine requires a tailored approach to meet your specific production needs. Below is a general outline of the steps you can follow:

1

Define Your Requirements: Determine the types of springs you want to produce, including their dimensions, materials, and required production volume. Identify any unique features or capabilities the machine must have.

2

Research and Gather Information: Study existing spring-making machines and technologies to understand their functionalities and limitations. Collect information about the mechanical, electrical, and control systems needed for spring fabrication.

3

Conceptual Design: Based on your requirements, create a conceptual design for the machine. Sketch the layout, decide on the number of axes, and determine the mechanisms for wire feeding, coiling, cutting, and other necessary operations.

4

Select Components and Materials: Choose suitable components such as motors, bearings, guides, and electronic systems. Select high-quality materials that can withstand the operational stresses of continuous use.

5

Detailed Design: Use computer-aided design (CAD) software to create a comprehensive design that includes all mechanical and electrical aspects of the machine.

6

Fabrication and Assembly: Manufacture or source the necessary components based on the detailed design. Carefully assemble the machine, ensuring precision and proper alignment.

7

Electrical and Electronic Setup: Install motors, sensors, actuators, and other control components. Develop the control system using either microcontrollers or programmable logic controllers (PLCs).

8

Programming: Develop software to control the machine’s operations. The program should interpret input data, regulate motor movements, and manage safety features.

9

Testing and Calibration: Conduct thorough testing using different wire materials and spring types. Calibrate the machine to ensure it produces springs according to your desired specifications.

10

Safety Measures: Integrate essential safety features to protect operators and prevent accidents. These may include emergency stop buttons, protective covers, and status monitoring sensors.

11

User Manual and Documentation: Create a detailed user manual that includes operating instructions, maintenance procedures, and troubleshooting guidelines.

12

Training and Familiarization: Train operators to use the machine safely and efficiently, ensuring they understand all functions and safety protocols.

13

Continuous Improvement: Gather feedback and monitor performance to plan future upgrades and enhancements as your needs evolve.

Packaging
Size	140 (L) * 120 (W) * 180 (D)
Weight	1.5 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Certificate

productcate-1-1

productcate-1-1

productcate-1-1

FAQ

Q: How to place the order?

A: You can place the order by email us or reach us directly with your contact information.

Q: What is the MOQ?

A: One set. The more you have, the better price you will get.

Q: What is the payment term?

A: The payment term is 30% deposit as PO confirmation, and 70% before the shipment.We also accept other payment term.

Q: What is the delivery time?

A: Normally the delivery time of the machine is 30-40 working days after receiving deposit.But it all depends on machine models you place the order. Some of them could be shipped within 7 working days if we have that machine available in our warehouse.

Q: What is the guarantee period of the machine?

A: The guarantee period is one year for the core components like motor from the date of B/L.

We're well-known as one of the leading spring forming machine manufacturers and suppliers in China. Please rest assured to wholesale high quality spring forming machine at competitive price from our factory. For custom service, contact us now.
