CNC Spring Forming Machine
CNC spring forming machines are versatile industrial machines used in the manufacturing of various types of springs.
- Product Introduction
CNC spring forming machines are versatile industrial machines used in the manufacturing of various types of springs.
These machines utilize Computer Numerical Control (CNC) technology to precisely shape and form wires into different spring configurations. The primary applications and uses of CNC spring forming machines include:
Production of Compression Springs: These machines can efficiently produce compression springs, which are used in a wide range of applications such as automotive suspensions, industrial machinery, and consumer products like pens.

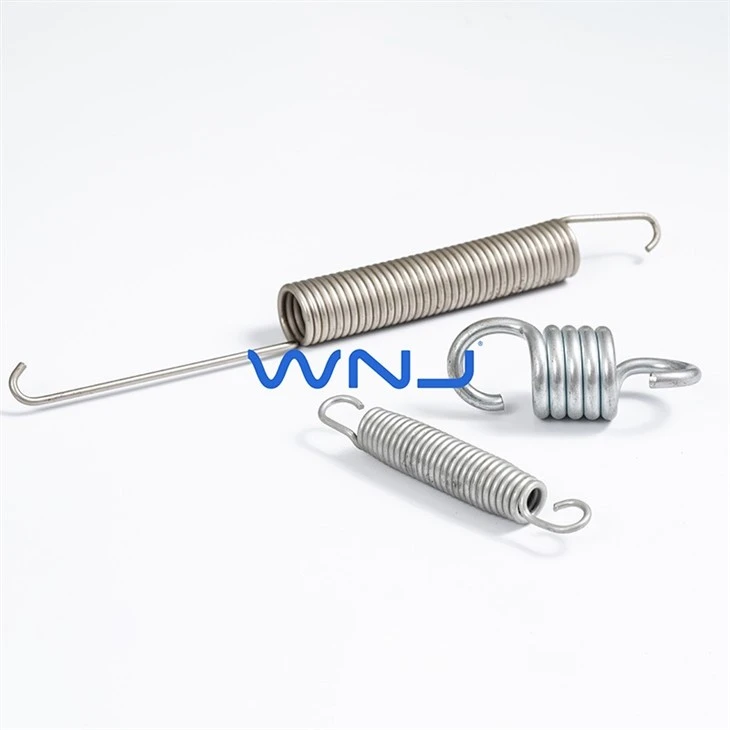

Manufacture of Extension Springs: These machines are capable of creating extension springs used in garage doors, trampolines, and various other mechanisms where tension and extension are required.
Fabrication of Torsion Springs: These machines are essential for manufacturing torsion springs used in applications like door hinges, clothing clips, and various torque-absorbing mechanisms.
Custom Spring Design: CNC technology allows for the creation of custom spring designs to meet specific application requirements. This flexibility is crucial in industries where unique or specialized springs are needed.
Automotive Industry: These machines are extensively used in the automotive sector to produce springs for suspension systems, braking systems, and clutch systems.
Electronics Industry: These machines can create tiny springs used in electrical connectors, switches, and various electronic devices.
Furniture Manufacturing: These machines are used to produce springs for sofas, mattresses, and chairs, ensuring comfort and support in furniture products.
Aerospace Industry: Critical components in aircraft require precision springs, and These machines are used to meet these demanding specifications.
Medical Device Manufacturing: Springs used in surgical instruments, medical devices, and equipment are often produced using These machines to ensure precision and reliability.
General Manufacturing: Various industries rely on CNC spring forming machines to produce springs used in machinery, appliances, and a wide range of consumer and industrial products.
Main Technique Parameter
|
Style |
CNC-625Z |
CNC-635Z |
CNC-650Z |
|
Wire diameter（Carbon steel wire）mm |
C0.3-C2.5 |
CL5-C3.5 |
|
|
Max. Outside Diameter（mm） |
50 |
60 |
120 |
|
Total Power（kw） |
9.5 |
15.7 |
29.2 |
|
Number of Axes |
5 Axis |
5 Axis |
5 Axis |
|
Number of Wire Feed Axes |
2 Pairs |
3 Pairs |
3Pairs |
|
Wire Feed Servo Motor（kw） |
2.7 |
5.5 |
11 |
|
Rotary Wire Servo Motor（kw） |
2.7 |
2.7 |
4.5 |
|
Rotary Mandrel Servo Motor（kw） |
1 |
1 |
1 |
|
Cam Axis Servo Motor（kw） |
2.7 |
5.5 |
11 |
|
Machine working state size（mm） |
1500x1700x1800 |
1780x2100x2000 |
2100x2750x2100 |
|
Main Host Weight（kg） |
1590 |
2710 |
5000 |
|
Voltage |
3AC380V/50HZ |
3AC380V/50HZ |
3AC380V/50HZ |
