Compression Spring Making Machine
Presenting the epitome of precision engineering - the TYPE TK660 6AXES Compression Spring Making Machine.
- Product Introduction
Introducing the epitome of precision engineering - the TYPE TK660 6AXES compression spring making machine.
Presenting the epitome of precision engineering - the TYPE TK660 6AXES Compression Spring Making Machine. This innovation is meticulously designed to redefine the realm of spring manufacturing, seamlessly combining cutting-edge technology with unparalleled performance.

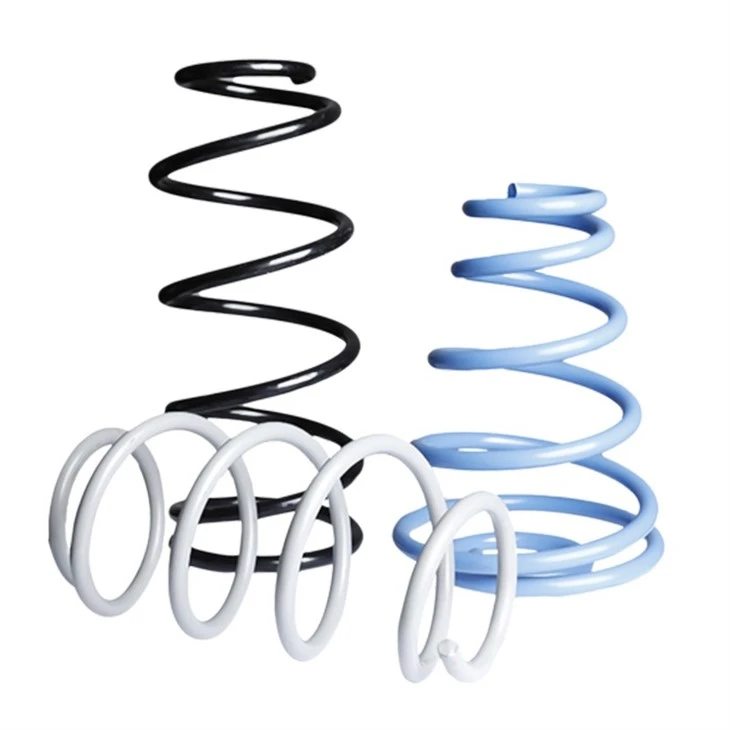

The compression spring making machine showcases a remarkable control system comprising six or seven axes, each contributing to the seamless operation of the machine. From the wire feed axis and pitch axis to the upper and lower variable diameters, along with the upper and lower cutter axes and the core pulling axis, every element is orchestrated to perfection. This level of control empowers you to produce an array of springs with remarkable precision, meeting the intricate demands of diverse designs.
Operational versatility takes the spotlight as the six axes can harmoniously operate in single-step mode or synchronously. This adaptability enables you to tailor your production process to the specific requirements of each project, optimizing efficiency without compromising on accuracy.
Navigating the intricacies of the machine is a breeze, thanks to the intuitive computer interface available in both Chinese and English. The user-friendly interface simplifies operation, ensuring accessibility even for those new to advanced CNC technology. With the TYPE TK660, precision and performance unite seamlessly, setting new standards in compression spring manufacturing.
Main Technique Parameter
|
Style |
TK-660 |
|
Wire diameter(Carbon steel wire)(mm ) |
2~6 |
|
Total power(kw) Total power |
35 |
|
Oil Quenching Line(<1700N/mm2) |
≤5 |
|
Max.Outside Diameter(mm) |
80 |
|
Wire Feed Length |
No Limitation |
|
Wire Feed Speed |
95m/min |
|
Rotation |
Left or Right |
|
Forming Way |
Double Points |
|
Number of Wire Feed Axes |
3Pairs |
|
Variable Diameter Axis Motor(kw) |
2.7x2 |
|
Pitch Axis Motor(kw) |
2 |
|
Wire Feed Axis Motor(kw) |
15 |
|
Cutter motor(kw ) |
5.5x2 |
|
Core Pulling Motor(kw) |
0 |
|
Machine working state size(mm) |
2350x2300x2065 |
|
Main Host Weight(kg) |
4020 |
|
Voltage |
3AC 380V/50HZ |
