Spring Forming
Introducing the CNC635Z 5AXES CNC Spring Forming Machines. Engineered with five axes, enabling single-step or synchronous operation.
- Product Introduction
Introducing the CNC635Z 5AXES CNC Spring Forming Machines. Engineered with five axes, enabling single-step or synchronous operation.

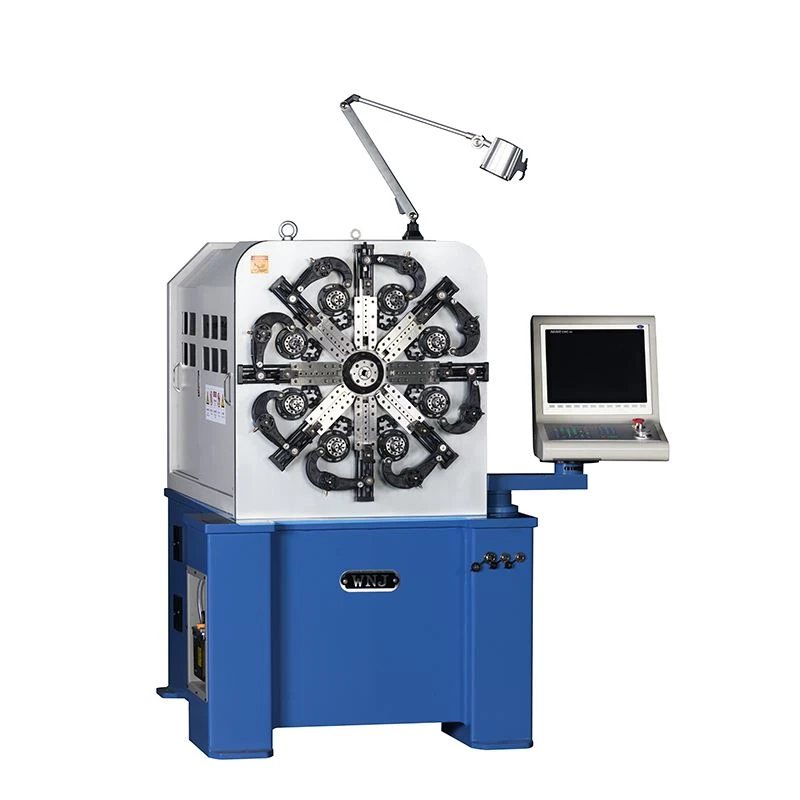

Introducing the CNC635Z - a cutting-edge marvel that stands at the forefront of spring forming technology. These state-of-the-art machines come equipped with five axes, offering the flexibility of both single-step and synchronous operations. Prepare to witness an unparalleled elevation in precision and efficiency within your forming process.
The integration of a rotary wire mechanism for wire feeding not only streamlines debugging but also introduces an added layer of convenience. Furthermore, the user-friendly computer interface, available in both Chinese and English, simplifies operation, ensuring accessibility even for those new to advanced CNC technology.

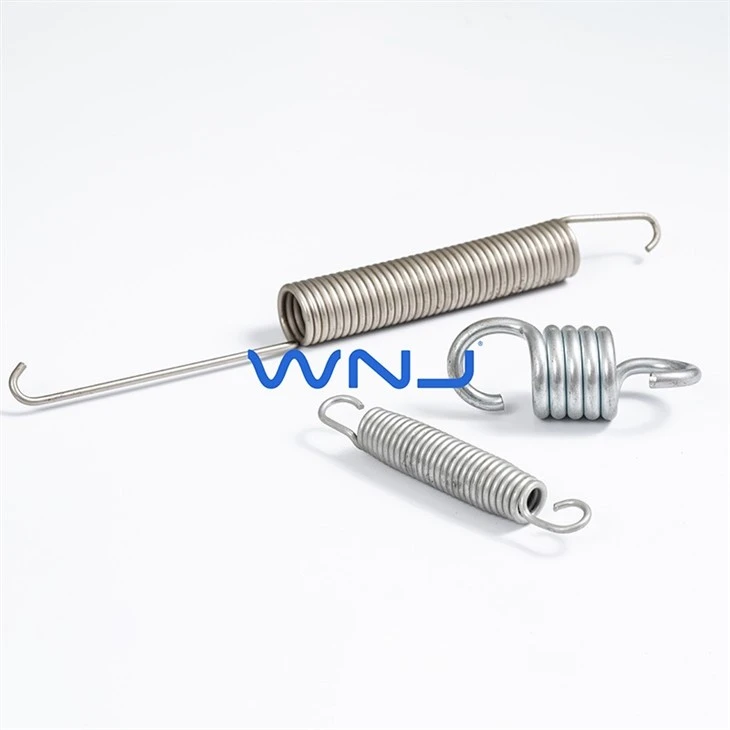

The versatility of these machines knows no bounds. From crafting double torsion springs and straight springs to tackling more intricate designs such as pagoda-shaped springs, rectangle springs, wire forms, scroll springs, and special-shaped springs, these machines present a comprehensive solution for all your spring-forming needs.
Main Technique Parameter
|
Style |
CNC-625Z |
CNC-635Z |
CNC-650Z |
|
Wire diameter（Carbon steel wire）mm |
C0.3-C2.5 |
CL5-C3.5 |
|
|
Max. Outside Diameter（mm） |
50 |
60 |
120 |
|
Total Power（kw） |
9.5 |
15.7 |
29.2 |
|
Number of Axes |
5 Axis |
5 Axis |
5 Axis |
|
Number of Wire Feed Axes |
2 Pairs |
3 Pairs |
3Pairs |
|
Wire Feed Servo Motor（kw） |
2.7 |
5.5 |
11 |
|
Rotary Wire Servo Motor（kw） |
2.7 |
2.7 |
4.5 |
|
Rotary Mandrel Servo Motor（kw） |
1 |
1 |
1 |
|
Cam Axis Servo Motor（kw） |
2.7 |
5.5 |
11 |
|
Machine working state size（mm） |
1500x1700x1800 |
1780x2100x2000 |
2100x2750x2100 |
|
Main Host Weight（kg） |
1590 |
2710 |
5000 |
|
Voltage |
3AC380V/50HZ |
3AC380V/50HZ |
3AC380V/50HZ |
With the CNC635Z, you're not just acquiring machinery – you're making an investment in precision, versatility, and innovation that will reshape your manufacturing capabilities. Embark on a journey into the future of spring forming technology with these advanced machines that redefine the limits of what's possible.
