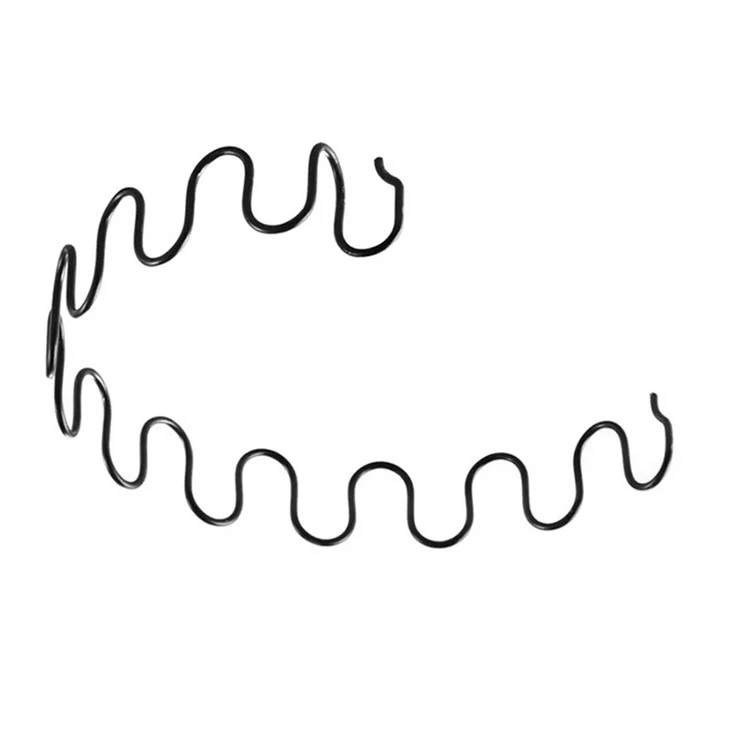

Automatic Zig Zag Sofa Spring Reel Winder Machine
Presenting the CNC-1240 12AXES Automatic Zig Zag Sofa Spring Reel Winder Machine, meticulously crafted to redefine the realm of spring manufacturing.
- Product Introduction
Presenting the CNC-1240 12AXES Automatic Zig Zag Sofa Spring Reel Winder Machine, meticulously crafted to redefine the realm of spring manufacturing.
The Automatic Zig Zag Sofa Spring Reel Winder Machine is a testament to cutting-edge technology and exceptional performance, poised to revolutionize the industry. With a sophisticated twelve-axis control system at its core, it empowers you to craft a diverse array of springs with unparalleled precision.
From wire feed to upper and lower cutters, variable diameters, and pitch, every intricate detail is calibrated to your exact specifications. This machine provides unparalleled operational flexibility, flawlessly transitioning between single-step or synchronous modes. This adaptability optimizes production efficiency without sacrificing precision, catering to your unique project requirements.
Navigating the complexities of the CNC-1240 is a breeze, thanks to the intuitive computer interface available in both Chinese and English. This user-friendly interface ensures seamless operation, catering even to those new to advanced CNC technology.
At the heart of this machine lies its camless design, offering fast adjustment speeds, low noise levels, exceptional accuracy, and unwavering stability. Controlled by twelve axes, it can effortlessly function in single-step or synchronous modes. The slider, equipped with a precision linear guide mode, can be augmented with a spinner and servo cutter.
Wire feeding employs a rotary wire mechanism, enhancing debugging convenience. This machine's capabilities extend to crafting an array of springs, including double torsion springs, straight springs, pagoda-shaped springs, rectangle springs, wire forms, scroll springs, and special-shaped springs.
The CNC-1240 12AXES Automatic Zig Zag Sofa Spring Reel Winder Machine isn't merely a machine – it's an avenue to precision and innovation, reshaping the boundaries of spring manufacturing. Embrace the future of spring production with this advanced machine, where technology and craftsmanship unite to redefine what's achievable.
Main Technique Parameter
|
Style |
CNC-1225 |
CNC-1240B |
CNC-1260B |
CNC-1280B |
|
Wire diameter（Carbon steel wire）（mm） |
0.3- 2.5 |
1.5-4 |
2.5-6 |
3-8 |
|
Max. Outside Diameter（mm） |
70 |
120 |
150 |
170 |
|
Total Power（kw） |
14.8 |
27 |
59.5 |
62 |
|
Number of Axes |
12 Axis |
12 Axis |
12 Axis |
12Axis |
|
Number of Wire Feed Axes |
2 Pairs |
3 Pairs |
4 Pairs |
4Pairs |
|
Wire Feed Servo Motor（kw） |
2.7 |
5.5 |
15 |
15 |
|
Rotary Wire Servo Motor（kw） |
2.7 |
2.7 |
4.5 |
5.5 |
|
Slider Cutter Servo Motor（kw） |
1x8 |
2x8 |
4.5x8 |
4.5x8 |
|
Rotary Mandrel Servo Motor（kw） |
1 |
1 |
1.5 |
2.7 |
|
Machine working state size（mm） |
1680x1720x1880 |
2400x2600x2000 |
2750x3360x2400 |
3500x2400x2500 |
|
Main Host Weight（kg） |
1630 |
3610 |
7300 |
15000 |
|
Voltage |
3AC 380V/50HZ |
3AC 380V/50HZ |
3AC 380V/50HZ |
3AC380V/50HZ |
