CNC Torsion Spring Machine
At the heart of the TK7200 lies a meticulously crafted twelve-axis control system, propelling spring production to uncharted heights.
- Product Introduction

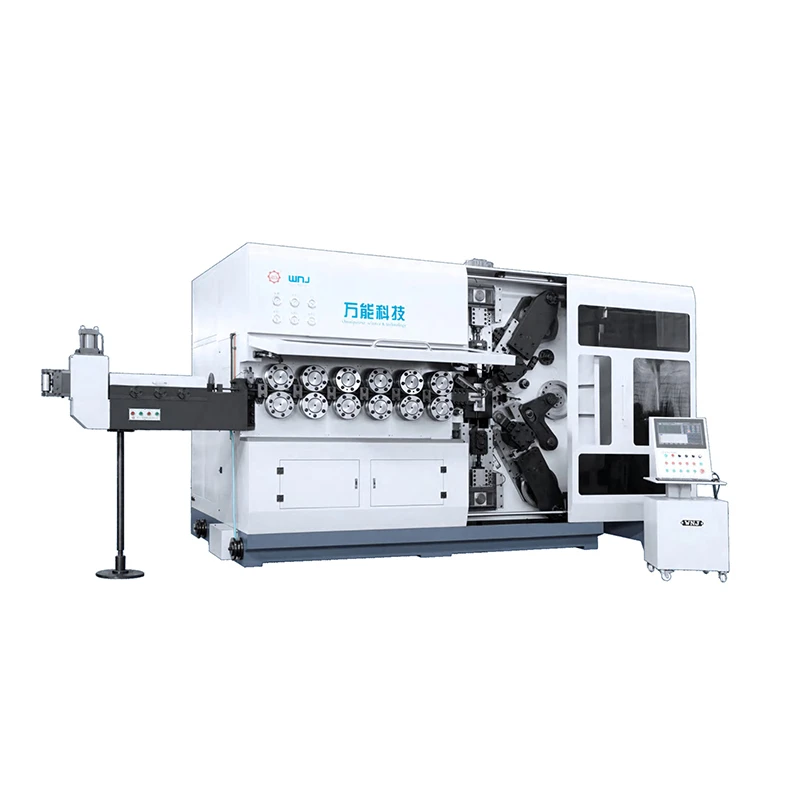

The TYPE TK7200 12AXES CNC Torsion Spring Machine seamlessly merges cutting-edge technology with unparalleled performance

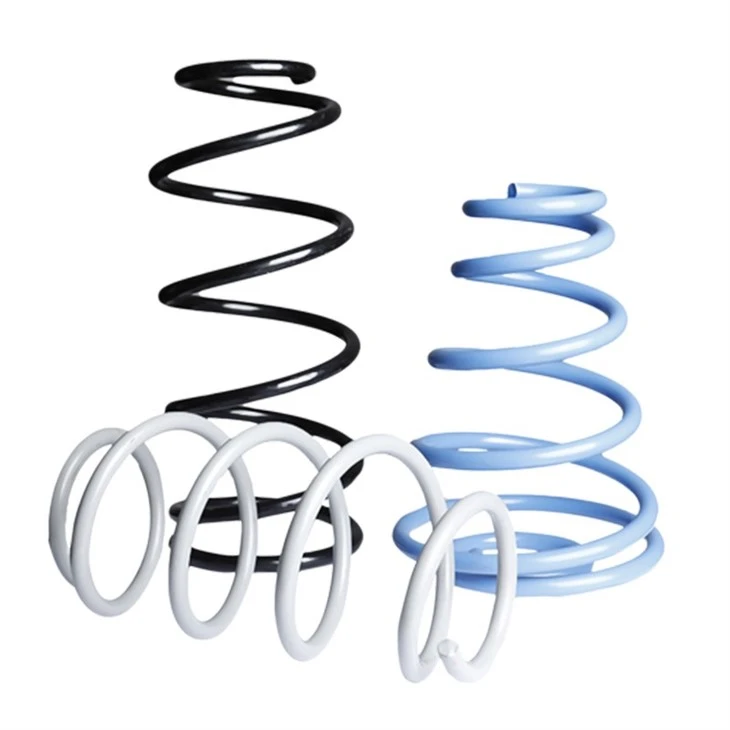

At the heart of the TK7200 lies a meticulously crafted twelve-axis control system, propelling spring production to uncharted heights. From wire feed to upper and lower cutters, variable diameters, and pitch, every parameter rests firmly under your complete control. This remarkable versatility empowers you to craft a diverse array of springs, catering effortlessly to the intricate demands of various designs and precise specifications.
Operational flexibility takes center stage, as the twelve axes operate in harmonious synchrony, seamlessly transitioning between single-step mode and synchronous operation. This adaptability ensures your manufacturing process can be finely tuned to meet the exact requirements of each project, optimizing production efficiency without a compromise on precision.
Navigating the intricacies of the CNC Torsion Spring Machine is a breeze, thanks to the intuitive computer interface available in both Chinese and English. The user-friendly interface simplifies operation, ensuring accessibility even for those new to advanced CNC technology.
The TYPE TK7200 boasts an innovative right and left rotation cutter frame, endowing you with a myriad of cutting options. From straight and opposite cuts to twist cuts, your creative vision finds limitless expression.
Further amplifying its capabilities, the onboard computer flaunts automatic programming functionality. This ingenious feature streamlines your workflow by enabling the machine to autonomously generate programs, minimizing the need for extensive manual input and reducing the scope for errors.
In the realm of precision manufacturing, the TYPE TK7200 12AXES CNC Torsion Spring Machine stands as a beacon of innovation, a testament to the seamless fusion of technology and performance. Step into the future of spring production with the TK7200, where precision and versatility harmoniously unite.
Main Technique Parameter
|
Style |
TK-7200 |
|
Number of Axes |
12 |
|
Wire diameter(Carbon steel wire)(mm) |
9-20 |
|
Total power(kw) |
232 |
|
Oil Quenching Line(<1900N/mm2 ) |
≤17.5 |
|
Max.Outside Diameter(mm) |
260 |
|
Wire Feed Length |
No Limitation |
|
Wire Feed Speed |
87m/min |
|
Rotation |
Left or Right |
|
Forming Way |
Double Points |
|
Number of Wire Feed Axes |
6Pairs |
|
Variable diameter motor（kw） |
16x2 |
|
Pitch Axis Motor（kw） |
11 |
|
Wire Feed Axis Motor(kw) |
15x6 |
|
Cutter motor（kw） |
40x2 |
|
Variable diameter movable(kw) |
8.8 |
|
Machine working state size)(mm) |
6800x4000x3000 |
|
Main Host Weight(kg) |
33000 |
|
Voltage |
3AC380V/50HZ |
