CNC Spring Making Machine
It is an industrial machine used in the production of various types of springs.
- Product Introduction

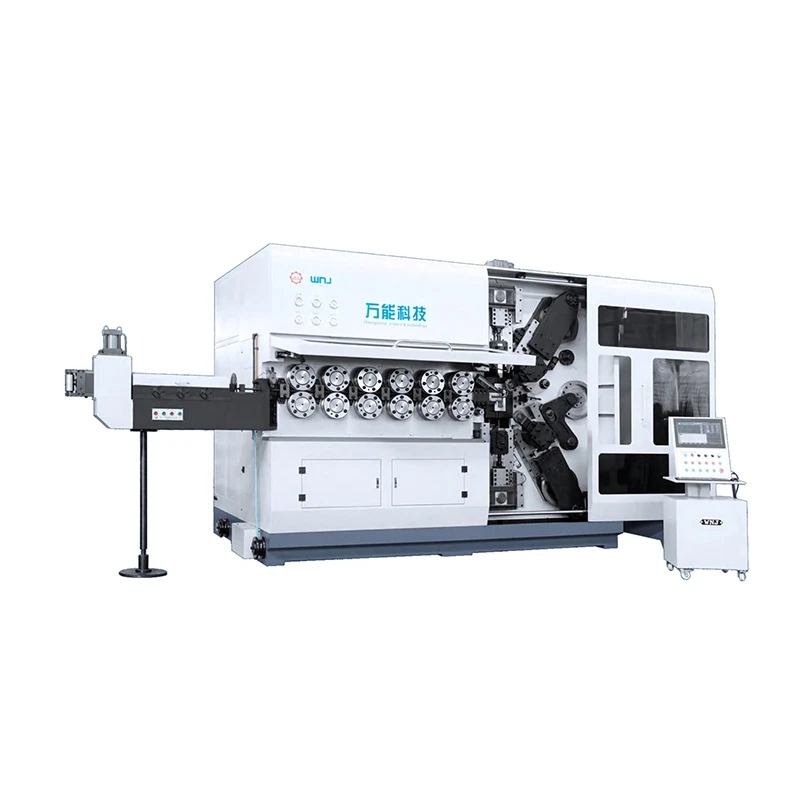

Introducing the epitome of precision engineering - the TYPE TK7200 12AXES CNC Spring Making Machine.
It is an industrial machine used in the production of various types of springs. These machines are equipped with Computer Numerical Control (CNC) technology, which allows for precise and automated shaping and coiling of wires into different spring configurations. CNC spring making machines are versatile and can be employed in various industries and applications.
Key features and functions of a CNC spring making machine include:
Wire Feeding: These machines are designed to feed wire material into the coiling and bending mechanisms.

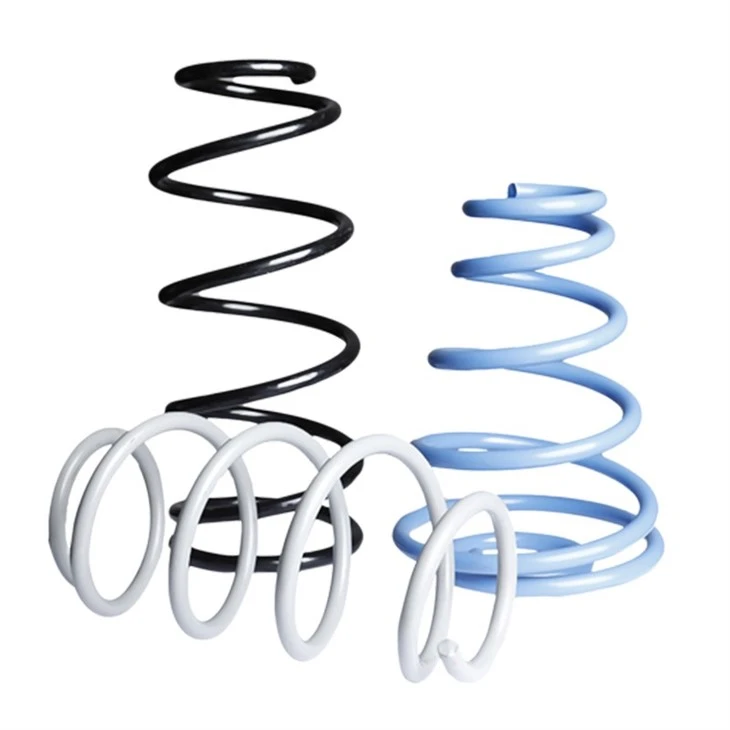

Wire Shaping: The CNC technology precisely shapes the wire into different types of springs, such as compression springs, extension springs, torsion springs, and more.
Coiling: The machine coils the wire according to the desired spring specifications, ensuring consistent pitch and diameter.
Cutting: Some machines include cutting mechanisms to trim the springs to the required length.
Forming: These machines can also create complex spring shapes and forms, including custom designs for specific applications.
Applications of These machines span various industries, including:
Automotive: Used in the manufacturing of suspension springs, brake springs, and various other components.
Electronics: Produces small springs for electrical connectors, switches, and devices.
Furniture: Used to create springs for sofas, mattresses, and chairs for added comfort and support.
Aerospace: Essential for producing precision springs used in aircraft components and systems.
Medical Devices: Used in the production of springs for surgical instruments, medical devices, and equipment.
General Manufacturing: Employed in various industries to create springs for machinery, appliances, and more.
These machines offer advantages like automation, high precision, efficiency, and the ability to meet specific size and performance requirements. They play a crucial role in ensuring the quality and consistency of springs used in a wide range of products.
Main Technique Parameter
|
Style |
TK-7200 |
|
Number of Axes |
12 |
|
Wire diameter(Carbon steel wire)(mm) |
9-20 |
|
Total power(kw) |
232 |
|
Oil Quenching Line(<1900N/mm2 ) |
≤17.5 |
|
Max.Outside Diameter(mm) |
260 |
|
Wire Feed Length |
No Limitation |
|
Wire Feed Speed |
87m/min |
|
Rotation |
Left or Right |
|
Forming Way |
Double Points |
|
Number of Wire Feed Axes |
6Pairs |
|
Variable diameter motor（kw） |
16x2 |
|
Pitch Axis Motor（kw） |
11 |
|
Wire Feed Axis Motor(kw) |
15x6 |
|
Cutter motor（kw） |
40x2 |
|
Variable diameter movable(kw) |
8.8 |
|
Machine working state size)(mm) |
6800x4000x3000 |
|
Main Host Weight(kg) |
33000 |
|
Voltage |
3AC380V/50HZ |
