Spring End Grinders

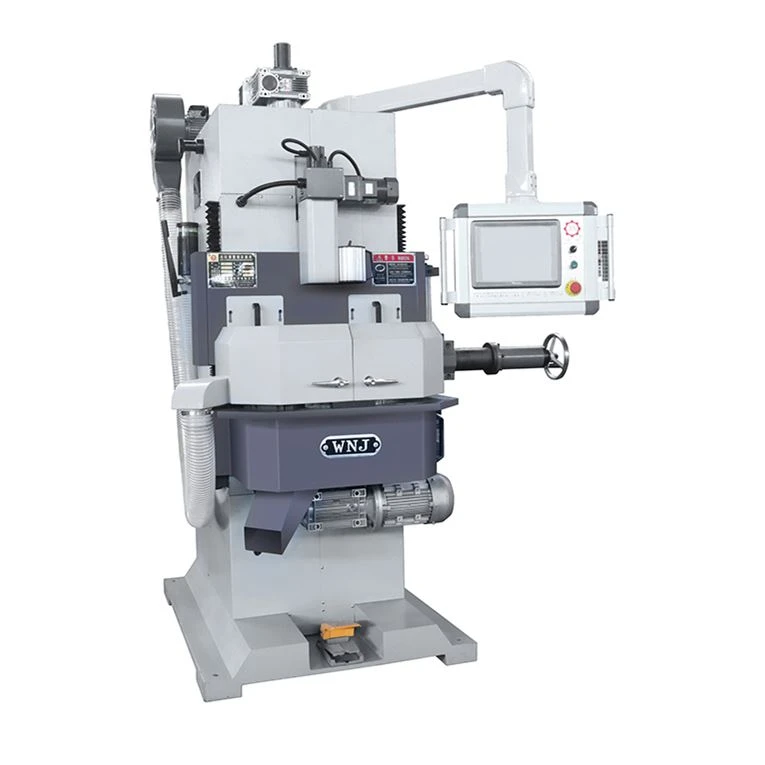

WNM6 CNC spring end grinders is the latest developed spring grinding machine based on the advanced CNC end grinding technology at home and abroad.
- Product Introduction
WNM6 CNC spring end grinders is the latest developed spring grinding machine based on the advanced CNC end grinding technology at home and abroad. It adopts servo motor to control the grinding wheel and has automatic inspection,compensation and alarm ing function. The feed speed,feed rate,grinding pressurejeeding tray speed, all can be prog rammed on the computer. It s convenient to operate and has a high efficiency.Spring end grinders is the idea I equipment for mass production of double-end grinding spring.
Introducing the WNM6 CNC spring end grinders – an epitome of cutting-edge CNC end grinding technology merging the best of global advancements. Through precision-driven servo motor control, it redefines grinding accuracy. Its automated inspection, compensation, and alert functions streamline production. Effortlessly program feed speed, grinding pressure, and feeding tray velocity via the user-friendly computer interface. Combining user convenience with exceptional efficiency, it becomes the preferred solution for elevating mass production of double-end ground springs.
The computer controls the automatic feed and reset of the grinding head. The feed speed, feed rate and grinding pressure can be compensated automatically or manually.
The speed of the feeding tray is regulated by frequency conversion.
Step into the future with the WNM CNC spring end grinders, a masterpiece of CNC end grinding technology fused with innovation from both local and international fronts. Empowered by precision servo motor control, this machine redefines grinding precision. Its automated inspection, compensation, and alert system streamline the production process. Leverage the convenience of computer-programmable settings for feed speed, grinding pressure, and feeding tray velocity. A fusion of user-friendly design and remarkable efficiency, this machine stands as the ultimate solution for maximizing the mass production of double-end ground springs.
Main Technique Parameter
|
Style |
WNM2.5 |
WNM6 |
WNM9 |
WNM12 |
|
Wire Diameter(mm) |
O.3-2.5 |
0.8-6 |
|
|
|
Diameter of Grinding Spring(mm) Diameter of Grinding Spring |
5-40 |
5-6O |
10-100 |
20-120 |
|
Height of Grinding Spring(mm) Height of Grinding Spring |
8-80 |
10-200 |
10-400 |
20-500 |
|
Grinding Wheel Size(mm) |
220x50 |
400x55 |
450x65 |
660x170x100 |
|
Total Motor Power(kw) Total Motor Power(5PCS) |
5.2 |
10 |
20 |
31 |
|
Grinding Head Speed(n/min) |
2840 |
1440 |
1465 |
965 |
|
Machine working state size(mm) |
1300x1550x1900 |
1700x1450x2300 |
2100x1900x2750 |
2600x2400x3200 |
|
Main Host Weight(kg) |
800 |
2180 |
3300 |
5000 |
|
Voltage |
|
3AC 380V/50HZ |
|
|
