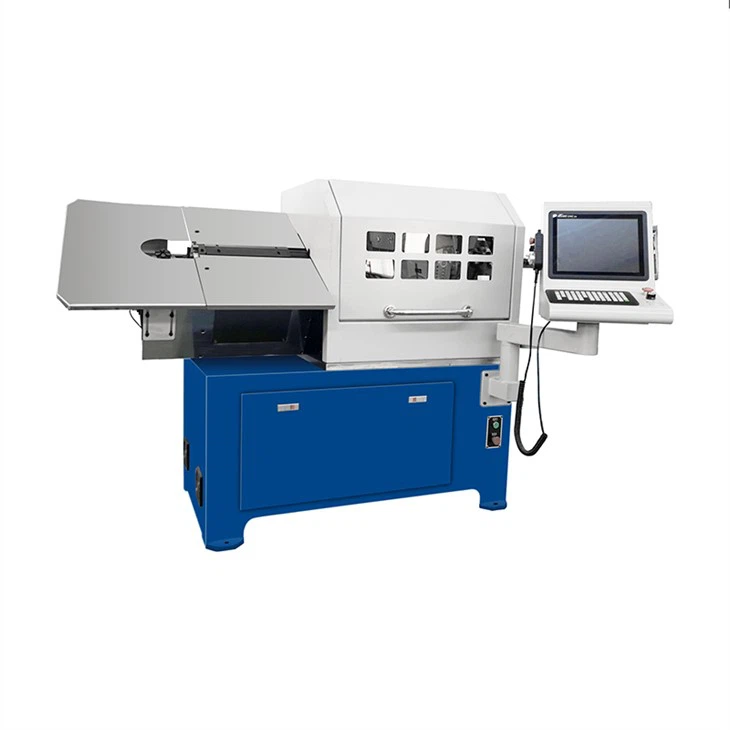

3D CNC Wire Bending Machine
These machines are the embodiment of precision engineering, capable of bending wires with an unprecedented level of accuracy.
- Product Introduction
The ZW480 and ZW740 3D CNC wire bending machine are at the forefront of this revolution, redefining the art of spring production.
These machines are the embodiment of precision engineering, capable of bending wires with an unprecedented level of accuracy. Whether you choose the four or seven-axis version, they provide you with the capability to effortlessly create a wide variety of springs, each one a masterpiece of precision.
What sets these machines apart is their innovative four/seven-axis linkage design, a testament to engineering excellence. This design allows for lightning-fast machine adjustments, ensuring rapid adaptability to various spring designs and specifications. No matter your production needs, these machines minimize downtime and maximize efficiency.
Precision is not just a feature; it's a promise. 3D CNC wire bending machine guarantee consistent quality, ensuring that every spring you produce adheres to the strictest quality standards. With high-precision automatic control mechanisms, you have meticulous control over every aspect of the bending process. The result? Unwaveringly reliable and precise springs.
Stability is the foundation of flawless operation, and these machines deliver it in abundance. Even in the most demanding industrial environments, their unwavering stability ensures consistent and dependable performance. Whether you opt for a single-step approach or synchronous operation for complex spring designs, the ZW480 and ZW740 machines offer a solution tailored to your needs.
Join us in embracing the future of spring manufacturing, where precision, performance, and versatility unite to redefine what's possible. Elevate your spring production capabilities with the ZW480 and ZW740 3D CNC wire bending machine, where precision craftsmanship and cutting-edge technology come together to shape the springs of tomorrow.
Main Technique Parameter
|
Style |
ZW480 |
ZW740 |
|
|
Wire diameter(Carbon steel wire) 2~8mm soft wire 2~6mm hard wire 1~4mm |
|||
|
Total Power（kw） |
8 |
9.8 |
|
|
Number of Axes |
4 Axis |
7 Axis |
|
|
Number of Wire Feed Axes |
3 Pairs |
2 Pairs |
|
|
Wire Feed Servo Motor（kw） |
4.5 |
2.7 |
|
|
Rotary Wire Servo Motor（kw） |
1 |
2.7 |
|
|
Up & Down Curved Servo Motor（kw） |
1 |
1 |
|
|
Curved Servo Motor（kw） |
/ |
1 |
|
|
Rotary Mandrel Servo Motor（kw） |
/ |
1 |
|
|
Cutter Servo Motor（kw） |
1.5 |
1 |
|
|
Lift & Tray Servo Motor（kw） |
/ |
0.4 |
|
|
Machine working state size（mm） |
3300x1100x1680 |
3000x1600x1800 |
|
|
Main Host Weight（kg） |
600 |
1650 |
|
|
Voltage |
3AC 380V/50HZ |
3AC 380V/50HZ |
|
